Specifications
Vehicle general
Chassis: 6061 t4 & t6 aluminum
Finish: anodized

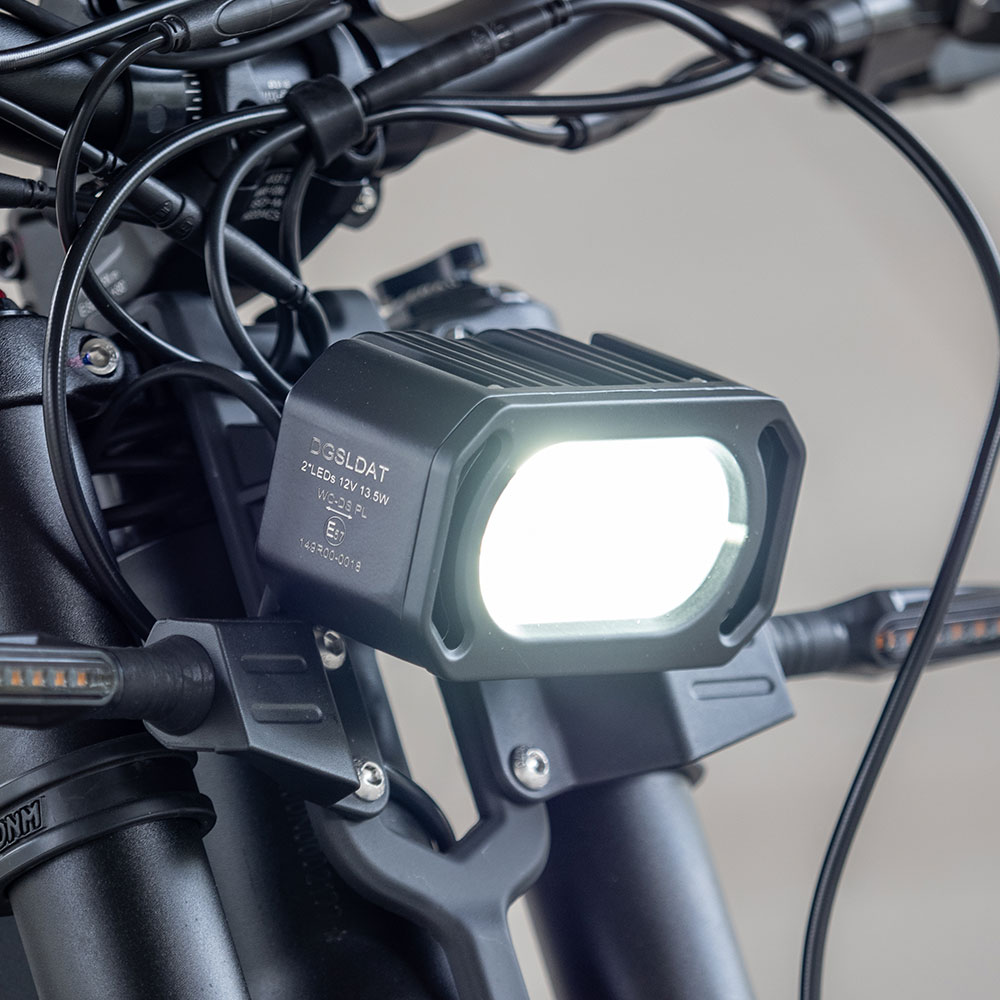

Lighting: Led
Front fork: RST/DNM
Rear suspension: Fastace / DNM
Wheel size: 19″
Tire: 70/100/19 & 80/100/19

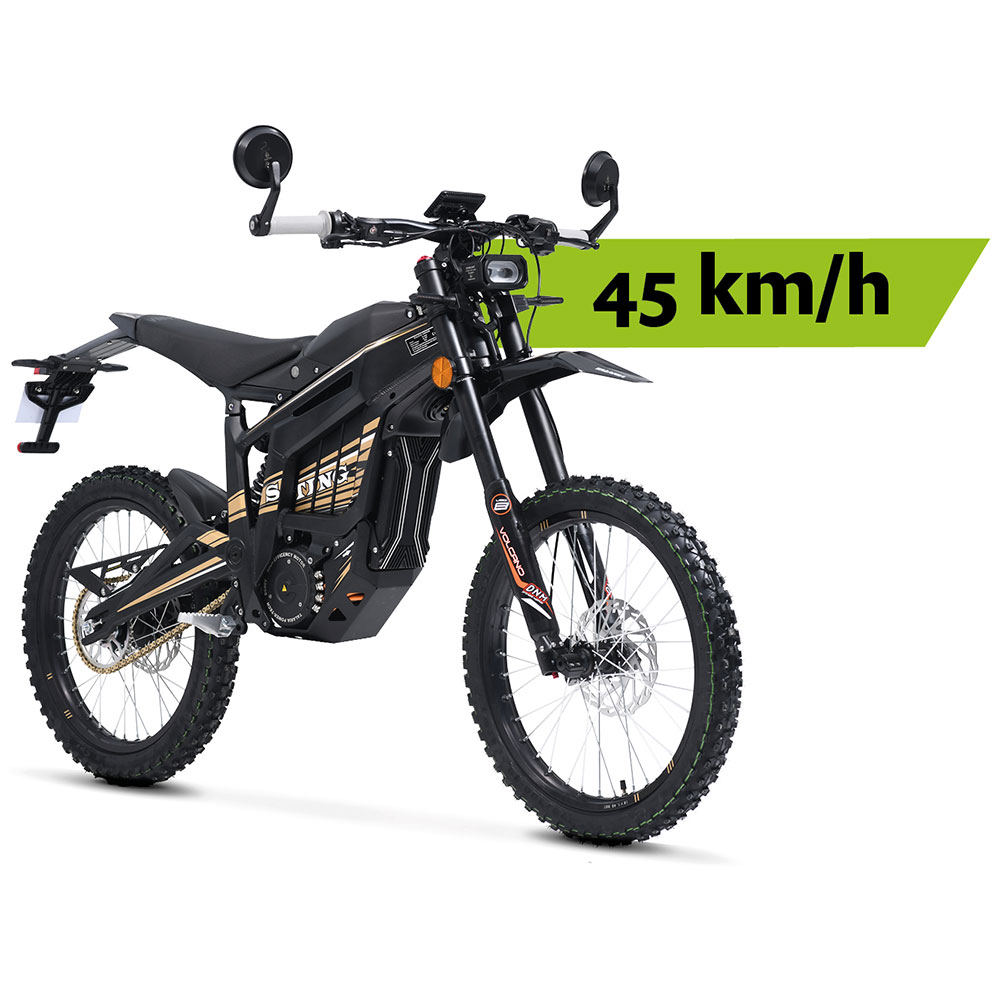

Top speed: 45km/h & 70km/h unlimited
Maximum range: 70km @ 40km/h
Net weight: 63kg (including battery)
Dimensions: 1850x770x1075mm
Seat height: 870mm
Wheelbase: 1225mm
Steering wheel width: 760mm
Ground clearance: 280mm
Engine
Type : LPMSM
Placement: Mid drive
Weight: 7kg
Diameter : 180mm
Efficiency : 92%
Cooling: Air cooled
Controller
Type: FOC
Weight: 2KG
Dimension: 248x128x50mm
Efficiency: 92%
Power
Rated voltage: 60V
Rated power: 3000w
Peak power: 6000w
Rated torque: 5.7NM
Peak torque: 34NM
Rear wheel torque: 284nm (44t) & 309nm (48t)

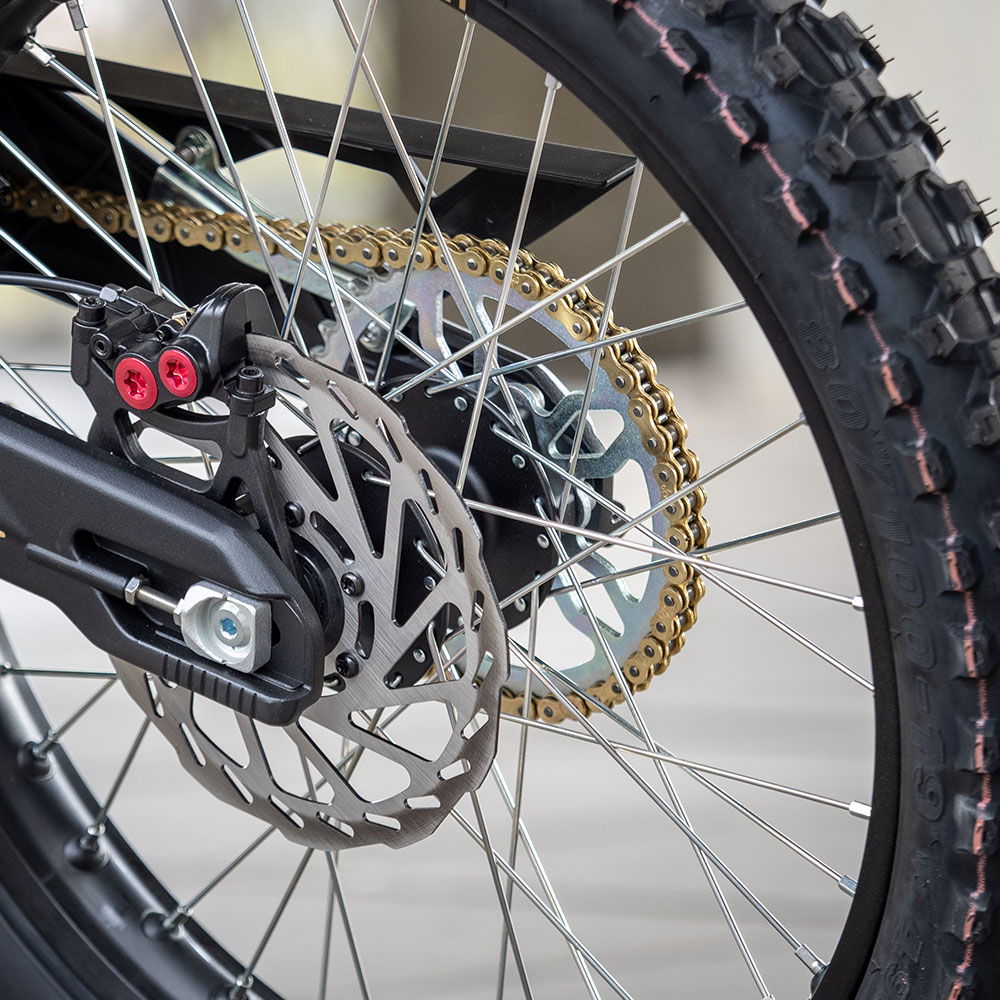

Transmission
Ratio: 8.35(44t) & 9.18(48t)
Transmission: gearbox
Battery
Voltage: 60v 38.4AH
Size: 170x140x380mm
Weight: 12.85kg
Cells: LG 21700 cells (5000 MAH/cell)
